Road Disc Fork

£430.00

Limited stock

Clear

Our passion for road cycling is where the AERA journey began. Our Road Disc fork was designed to perfectly complement the new era of disc brake road bikes.
Whether you’re a road racer or café racer our Road Disc fork provides a responsive and stiff front end to perfectly complement your ride.

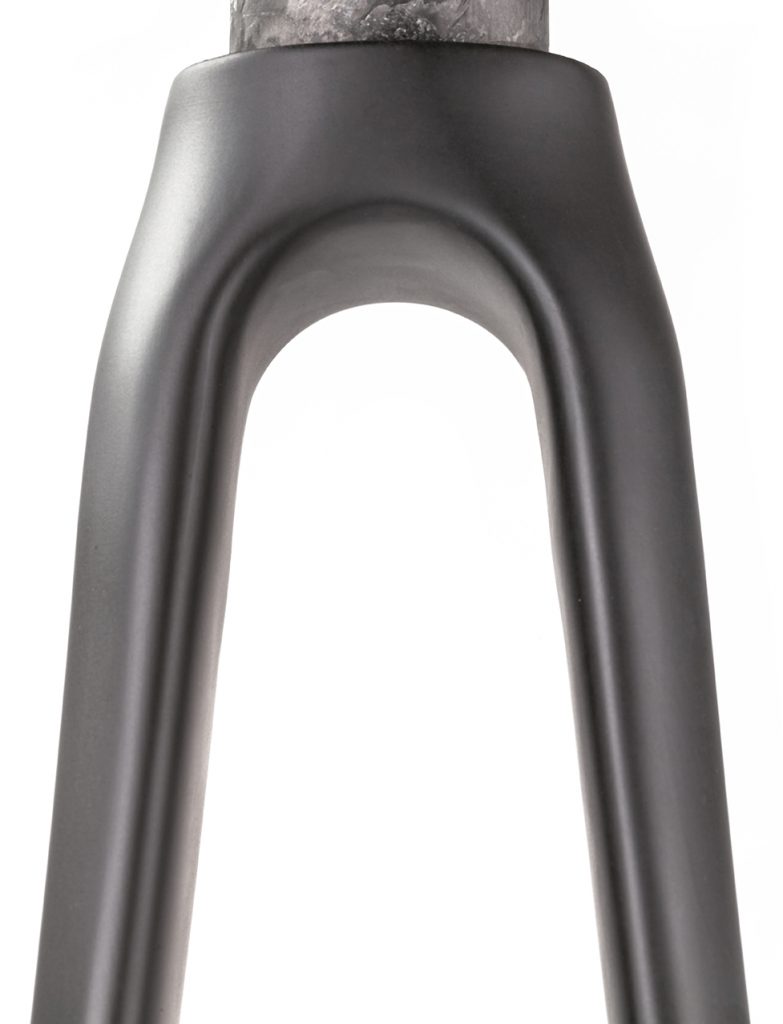

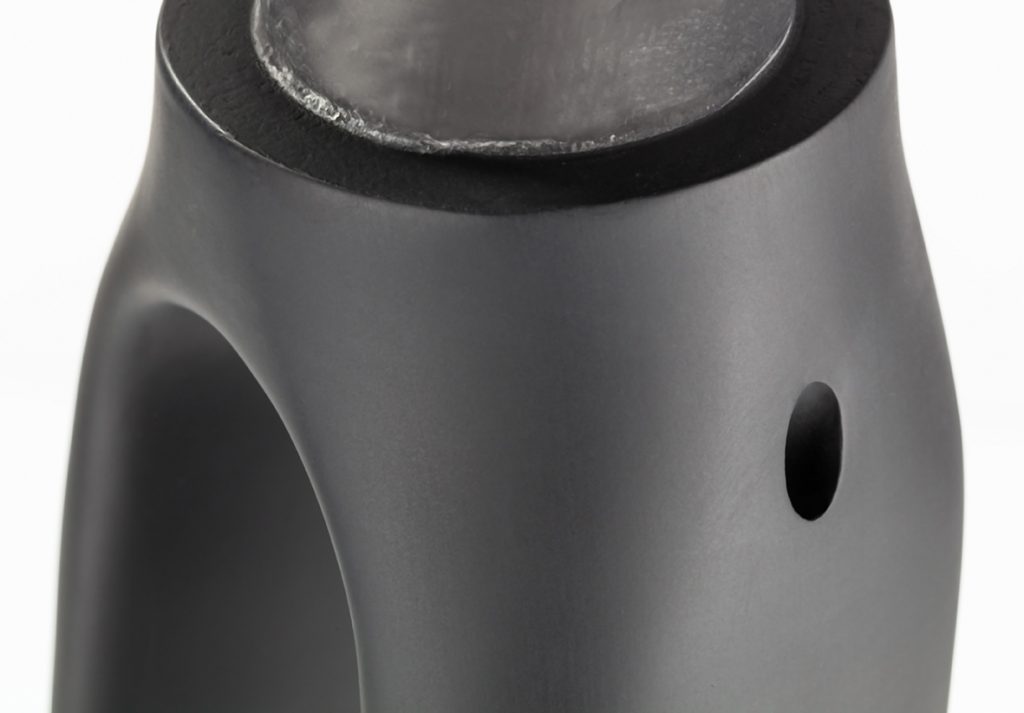

Our road disc fork has been designed to work perfectly with all 700C road tyres up to 32mm wide allowing for bigger volume road tyres that add both comfort and grip. The brake cable is hidden thanks to internally routed cable guide that allows the brake cable to exit exactly where the caliper is located for clean, uninterrupted lines. A confidence inspiring 12mm through axle design (supplied with the fork) keeps the front wheel laterally stiff as you rail into corners. The ‘flat mount’ brake mount is designed to be suitable for both hydraulic and cable operated flat mount disc brakes. The fork also works with ‘post mount’ brakes using an adapter. This fork is available with or without our signature bead blasted mudguards mounts.

SKU: N/A Category:

Technical Specification

Colour                                              Brevet Black – Hand painted in the UK

Custom painting available         Yes – Starting from £125. Contact us

Material                                          Carbon Fibre

Rake/Offset                                    45

Axle to Crown                                375mm

Brake Type                                     Flat mount disc brake calliper, or post mount calliper with adapter

Axle Type                                        12mm Shimano E-Thru Axle, supplied

Axle Spacing                                  100mm

Max Rotor Size                              160mm

Max Tyre Clearance                     700C: 32mm without mudguards, 28mm with mudguards

Steerer                                            Tapered 1 1/8 to 1 1/2

Steerer Tube Length                   300mm

Steerer Tube Torque Spec         5Nm

Mudguard Mounts                       Optional

Flat Mount Design                        Yes

Post Mount Suitable                   With adapter, not included

Cable Routing                                Internal

Warranty                                         2 years

Supplied with a 12mm Shimano E-Thru axle, headset expander, top cap and our signature bead blasted bolts. This fork can be supplied with a post mount adapter for post mount brakes if required.

All forks are hand painted in the UK. Custom colours and paint designs are available on request, starting from £125.
