AR Carbon Wheelset

£1,570.00£2,160.00

Clear
  • All hubs are specified with a Center Lock rotor system for quick and easy rotor installation.
  • Front hubs are 100x12mm and rear hubs 142×12 suitable for 12mm thru axles, unless otherwise specified.
  • Hubs are black as standard. For alternative colours please email us at team@rideaera.com.

Don’t see the hubs you’re looking for? Get in touch for custom build options, including ceramic bearing hubs.

SKU: N/A Category:

Take the road less travelled

Our most versatile and capable All Road disc carbon rims are designed to tackle everything from fast-paced road rides on ribbon smooth asphalt to adventures on cobbled pavé, forest fire trails an gritty gravel tracks.

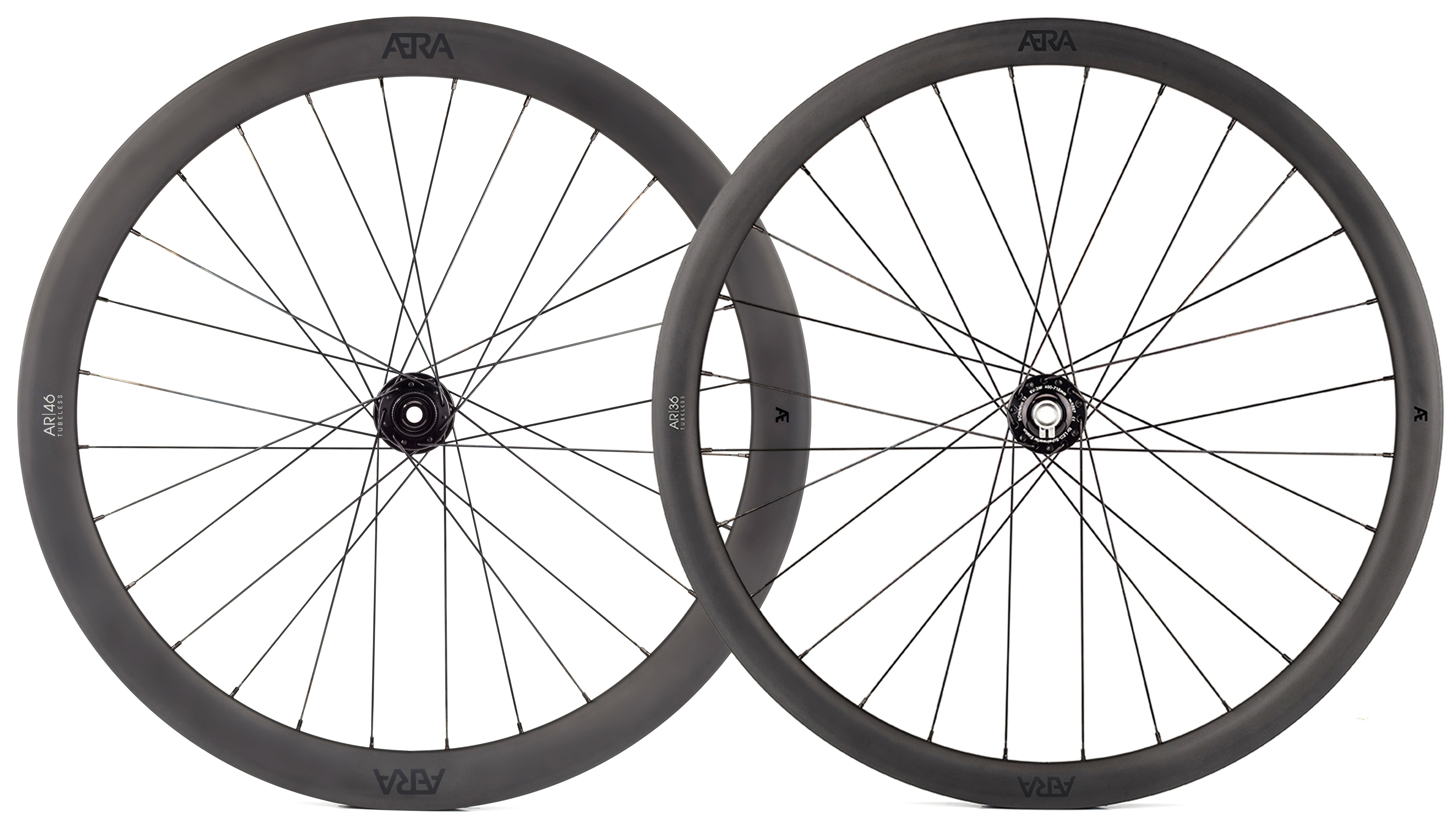

Available in three depths, AR|36, AR|46 and AR|56mm, our AR rims can be mixed depths front and rear, allowing for a deeper rim on the rear for an aerodynamic advantage without the worry of compromising handling at the front on blustery days. All three rim depths are available with 24 or 28 holes to truly tailor your wheelset to your terrain and riding style.

Our AR carbon rims are optimised for 28mm tyres but will work with tyres from 25mm all the way up to 50mm wide. Once fitted to the rim, a 28mm Schwalbe Pro One tyre measures 31mm wide, offering the perfect

tyre profile for excellent grip levels, handling and comfort.

For the ultimate in durability we recommend Hope RS4 hubs, perfect for anything from gravel adventures to fast road riding. German engineered Tune hubs offer the lightest wheels, while US-made Chris King hubs offer a classically styled performance alternative.

For the ultimate dynamo wheelset, perfect for ultra distance cycling, we offer a Son Schmidt dynamo hub up front paired with either a Hope, Tune or Chis King rear.

For the ultimate dynamo set-up to complement our AR dynamo wheels see our AR Dynamo fork with internal cable routing.

Rim Specification

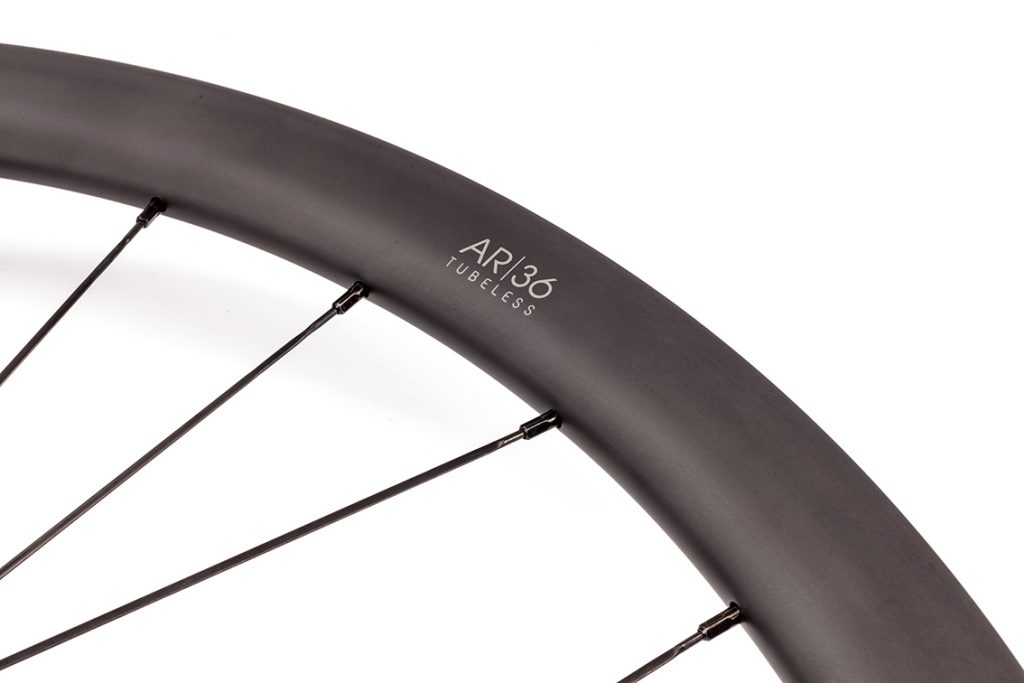

AR|36

Rim Depth                          36mm

Rim Weight                        410g

Internal Width                  21.1mm

External Width                 28.1mm

Spoke Holes                       24 or 28

Nipples                                Sapim Black Brass Nipples

Spokes                                 Sapim CX-Ray, black

Tyre Width                          25mm – 43mm

Tyre Type                             Clincher or Tubeless

Max Rider Weight             115kg

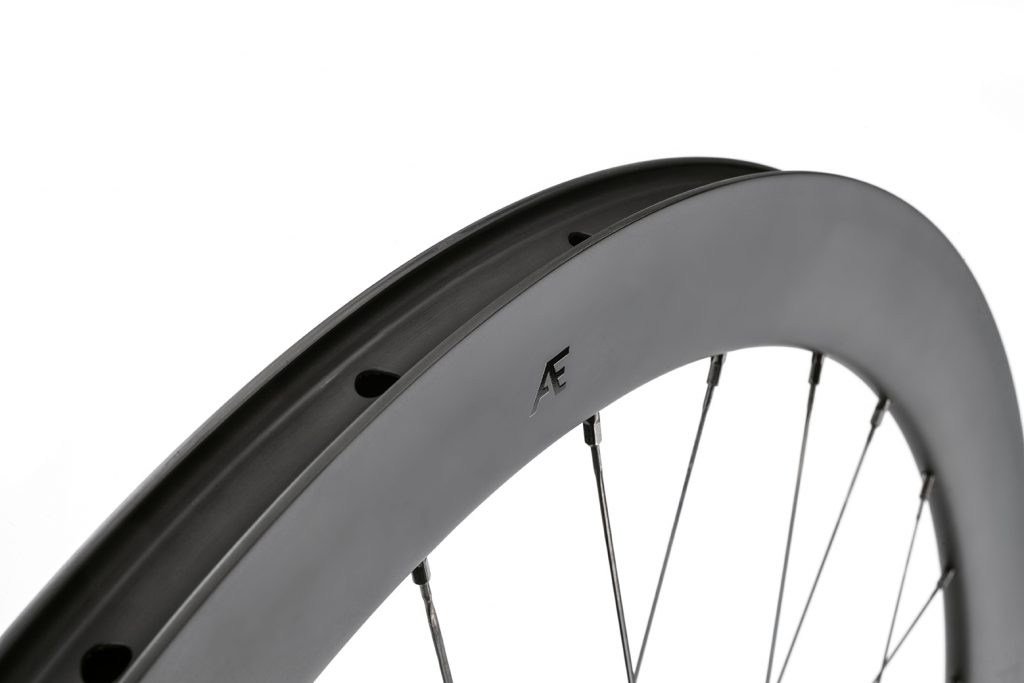

AR|46

Rim Depth                          46mm

Rim Weight                        435g

Internal Width                  21.1mm

External Width                 28.1mm

Spoke Holes                       24 or 28

Nipples                                Sapim Black Brass Nipples

Spokes                                 Sapim CX-Ray, black

Tyre Width                          25mm – 43mm

Tyre Type                             Clincher or Tubeless

Max Rider Weight             115kg

AR|56

Rim Depth                          56mm

Rim Weight                        460g

Internal Width                  22.9mm

External Width                 29.9mm

Spoke Holes                       24 or 28

Nipples                                Sapim Black Brass Nipples

Spokes                                 Sapim CX-Ray, black

Tyre Width                          28mm – 50mm

Tyre Type                             Clincher or Tubeless

Max Rider Weight             115kg
