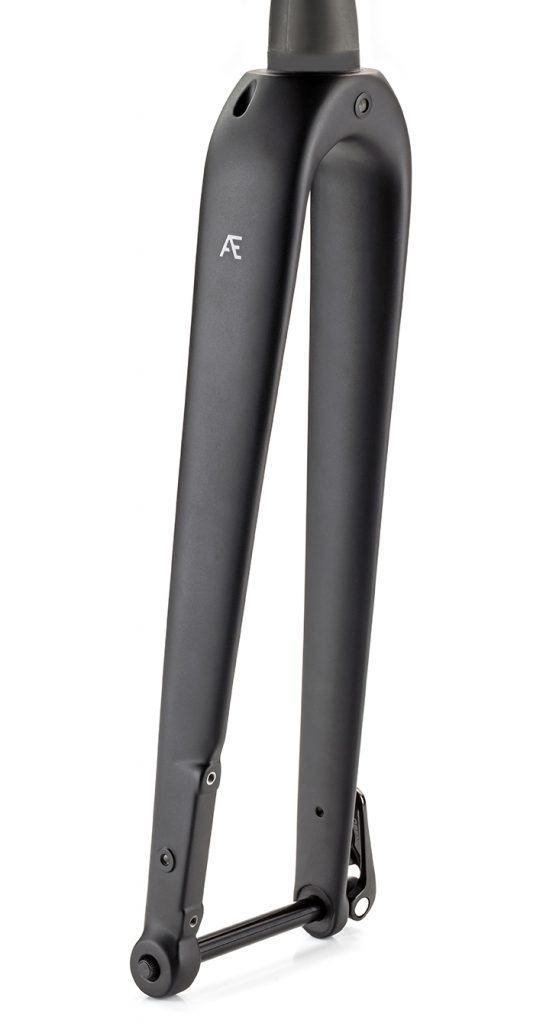

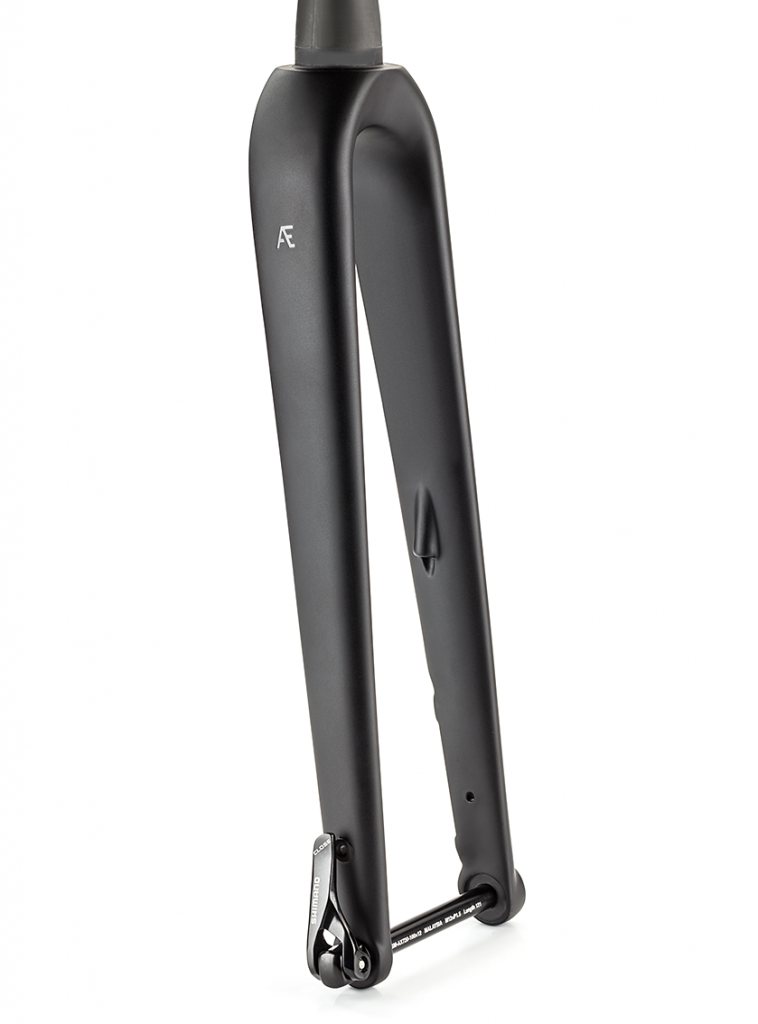

AR Disc Fork



Inspired by road rides that turn into ‘go everywhere’ rides, this fork encourages you to explore more, no matter how rough the terrain gets. Our AR Disc fork was designed for everything from training rides with friends to rides that take in everything from silky smooth tarmac to dusty farm tracks, tow paths and trails.
Our super capable ‘all-road’ carbon fork will run everything from 25, 28 or 30mm road tyres to bigger gravel & multi-surface tyres as wide as 38mm on 700C rims or up to 40mm on 650B rims.
This timeless design includes internal routing for your front brake cable and features the most popular and current ‘flat mount’ braking standard suitable for both hydraulic & cable operated disc brake designs.
A 12mm through axle stiffens up the interface between fork and wheel increasing front end stiffness which improves handling and responsiveness.

Compatible with the FSA ACR integrated stem/headset/steerer system, Sinewave Cycles Reactor USB and Cinq Plug5/Plug5 Plus charging devices.

SKU: N/A Category:

Technical Specification

Colour                                              Brevet Black – Hand painted in the UK.

Custom Painting Available        Yes – Starting from £125. Contact us

Material                                          Carbon Fibre

Rake/Offset                                    45

Axle to Crown                                397mm

Brake Type                                     Flat mount disc brake calliper, or post mount calliper with adapter

Axle Type                                        12mm Shimano E-Thru Axle, supplied

Axle Spacing                                  100mm

Max Rotor Size                              160mm

700C Tyre Clearance                  Up to 38mm

650B Tyre Clearance                  Up to 40mm

Steerer                                            Tapered 1 1/8 to 1 1/2

Steerer Tube Length                   300mm

Steerer Tube Torque Spec         5Nm

Mudguard Mounts                       Optional

Flat Mount Design                       Yes

Post Mount Suitable                   With adapter, not included

Cable Routing                                Internal

Warranty                                         2 years

Supplied with a 12mm Shimano E-Thru axle, headset expander, top cap and our signature bead blasted bolts. This fork can be supplied with a post mount adapter for post mount brakes if required. This fork is not suitable for tandem bicycles.

All forks are hand painted in the UK. Custom colours and paint designs are available on request, starting from £125.
