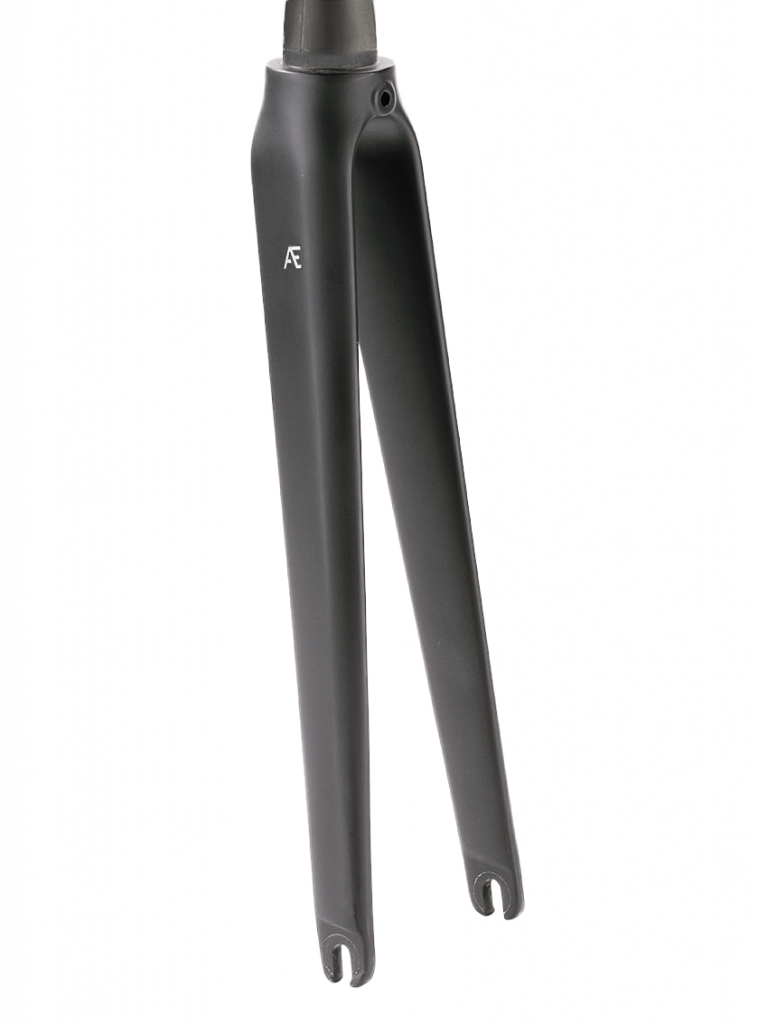

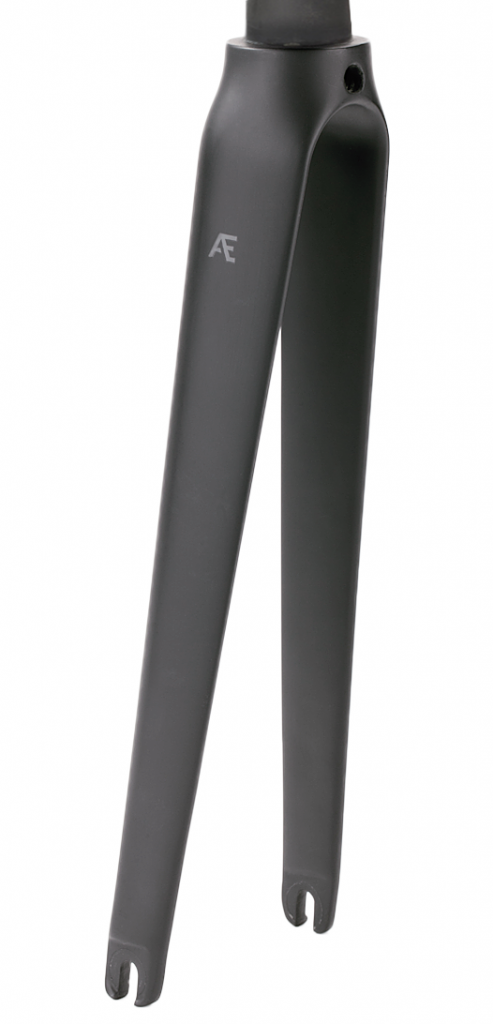

Road Caliper Fork


Limited stock

Caliper brakes have been dominant in road cycling for a long time and have evolved to offer excellent braking performance. Our carbon caliper fork has been designed to complement this traditional braking system with added style.
Whether you’re a road racer or café racer our caliper road fork provides a responsive and stiff front end to perfectly complement your ride.
Our road caliper fork has been designed to work perfectly with all 700C road tyres up to 28mm tyres allowing for bigger volume road tyres that add both comfort and grip.
This fork uses a standard (9mm) quick release design.
SKU: N/A Category:

Technical Specification

Colour                                              Brevet Black – Hand painted in the UK

Custom Painting Available       Yes – Starting from £125. Contact us

Material                                          Carbon Fibre

Rake/Offset                                    45

Axle to Crown                                368mm

Brake Type                                     Caliper

Axle Type                                        Quick-release

Axle Spacing                                  100mm

Max Tyre Clearance                     28mm without mudguards, 25mm with mudguards

Steerer                                            Tapered 1 1/8 to 1 1/2

Steerer Tube Length                   300mm

Steerer Tube Torque Spec         5Nm

Mudguard Mounts                       Optional

Warranty                                         2 years

All forks are hand painted in the UK. Custom colours and paint designs are available on request, starting from £125. This fork is not suitable for tandem bicycles.
